Item No.: 210200-22
LED machine light

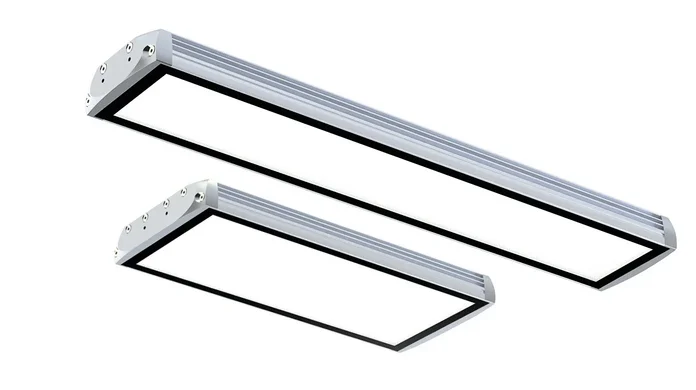

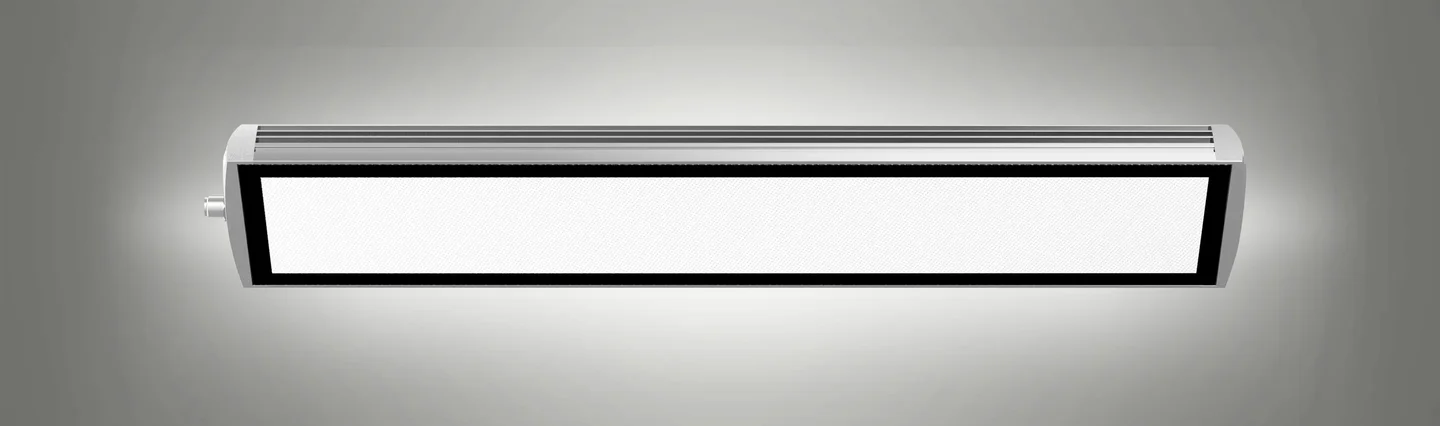

FIELDLED EVO Surface-Mounted
Powerful light in harsh environments
The surface-mounted version of the powerful FIELDLED EVO LED machine luminaire is ideal for harsh production environments. Microprismatic glare control under the toughened safety glass (TSG) achieves very high light diffusion with minimal reflection. The robust aluminum housing is completely sealed and, in combination with the safety glass, ensures a high protection rating of IP67 / IP69K. Depending on the variant, the connection is located on the front or the rear of the luminaire. Screw channels are also provided on the rear for mounting the machine light.
Your Benefits
- Bright and homogeneous illumination, flicker-free without UV and IR components
- Light emission over the entire lamp width
- Highly resistant to many oils and cooling lubricants, resistant to flying chips
- Single-pane safety glass (TSG) with microprismatic glare control underneath
- Long-lasting light output, as no oil or coolant can burn into the glass

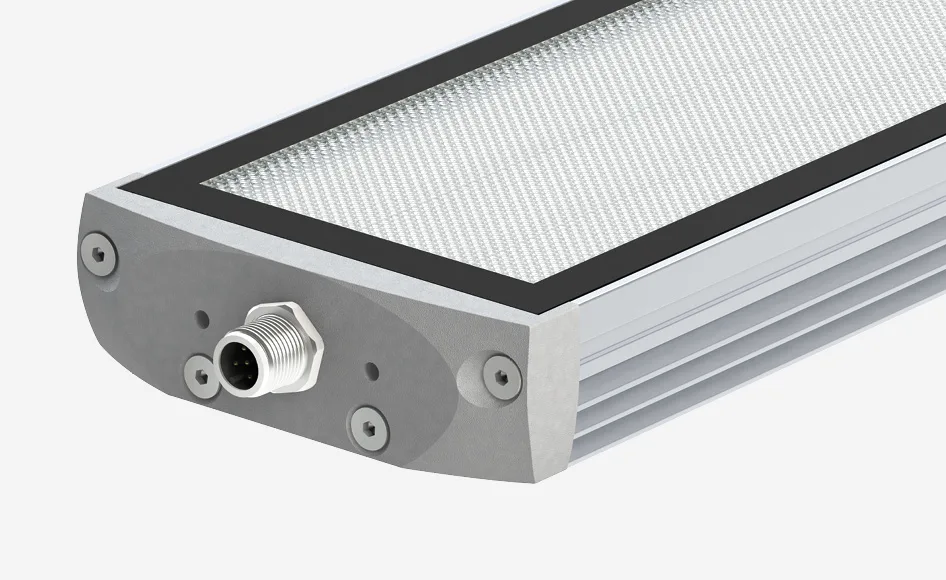

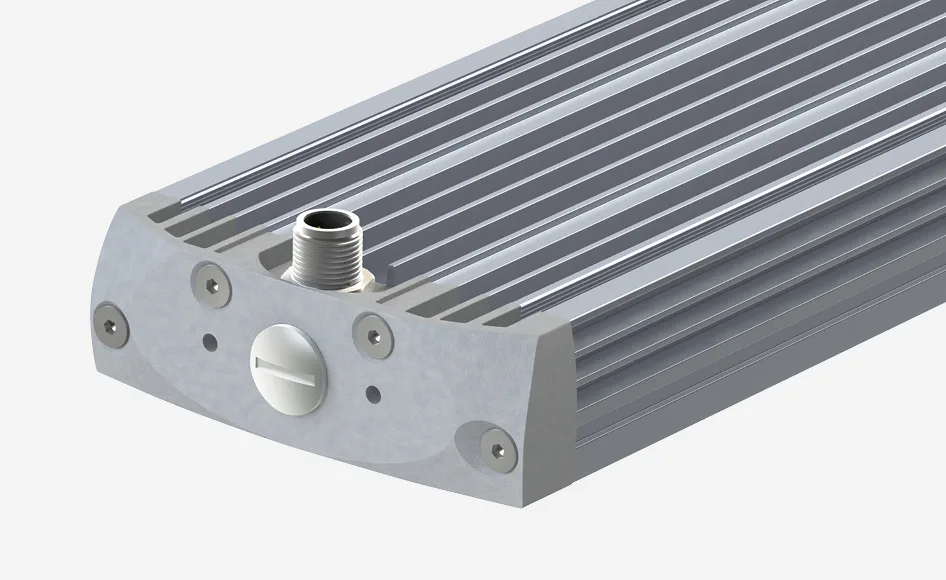

- Version with front-side and version with rear-side connection via M12 A-coded
- Mounting via screw channels on rear side or with optional luminaire brackets
Hinweis: Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube. Mehr Erfahren

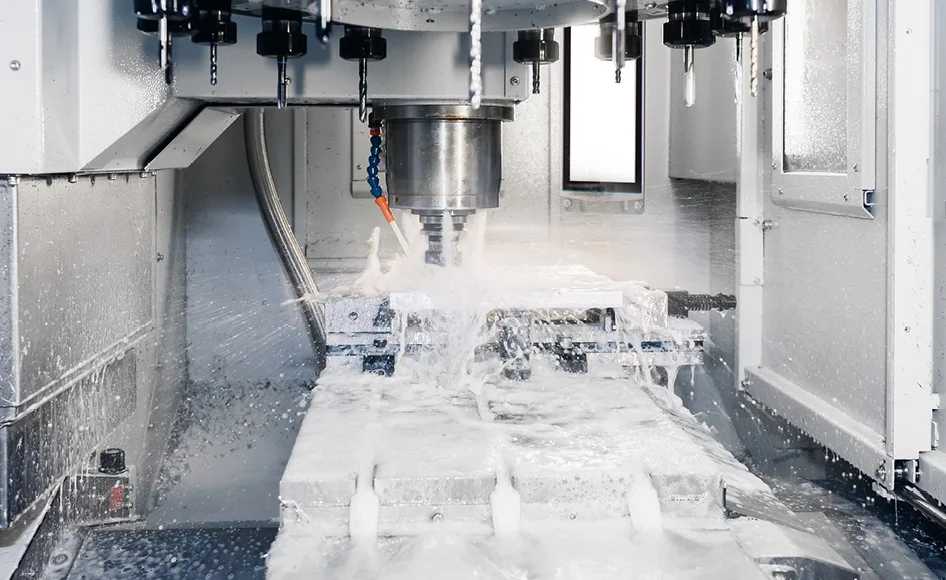

Areas of application
- Large-volume machines and installations
- CNC machines and machine tools
- Milling machines
- Surface grinding machines
Technology
- High-power LED chips for daylight white (5200-5700 K) – industry standard
- Beam angle of 100° and color reproduction of Ra > 85
- Densely packed LED array on the inside – extremely powerful
- Thick tempered safety glass with microprismatic glare control underneath and light forming technology
- Extremely high protection class IP67/IP69K and above-average LED lifetime >60,000h (L80/B10)
- Supply voltage 24V DC; connection via M12 plug connector on front or rear
- CE- and ETL-listed safety test seal (www.intertek.de/elektronik/etl-zeichen)
- M5 screw channels on rear for mounting; additional mounting accessories available separately
- No maintenance required, 36 month guarantee
- Developed and manufactured in Germany
Versions available
- 2 widths available in different lengths:
- Width 96 mm in lengths 280 mm, 540 mm, 790 mm, 1040 mm
- Width 150 mm in lengths 370 mm and 702 mm
FIELDLED EVO Aufbau
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| FIELDLED EVO 280_96 Aufbau, 280 mm (11,02“), 24V DC | 153010-01 | ~19 W | 3000 lm | Data sheet | |
| FIELDLED EVO 280_96 Aufbau, 280 mm (11,02“), 24V DC | 153010-02 | ~19 W | 3000 lm | Data sheet | |
| FIELDLED EVO 540_96 Aufbau, 540 mm (21,26“), 24V DC | 153110-01 | ~39 W | 6000 lm | Data sheet | |
| FIELDLED EVO 540_96 Aufbau, 540 mm (21,26“), 24V DC | 153110-02 | ~39 W | 6000 lm | Data sheet | |
| FIELDLED EVO 790_96 Aufbau, 790 mm (31,10“), 24V DC | 153210-01 | ~58 W | 9000 lm | Data sheet | |
| FIELDLED EVO 790_96 Aufbau, 790 mm (31,10“), 24V DC | 153210-02 | ~58 W | 9000 lm | Data sheet | |
| FIELDLED EVO 1040_96 Aufbau, 1040 mm (40,94“), 24V DC | 153310-01 | ~78 W | 12000 lm | Data sheet | |
| FIELDLED EVO 1040_96 Aufbau, 1040 mm (40,94“), 24V DC | 153310-02 | ~78 W | 12000 lm | Data sheet | |
| FIELDLED EVO 370_150 Aufbau, 370 mm (14,57“), 24V DC | 153410-01 | ~43 W | 6700 lm | Data sheet | |
| FIELDLED EVO 370_150 Aufbau, 370 mm (14,57“), 24V DC | 153410-02 | ~43 W | 6700 lm | Data sheet | |
| FIELDLED EVO 702_150 Aufbau, 702 mm (27,64“), 24V DC | 153510-01 | ~86 W | 13400 lm | Data sheet | |
| FIELDLED EVO 702_150 Aufbau, 702 mm (27,64“), 24V DC | 153510-02 | ~86 W | 13400 lm | Data sheet |
Product Accessories
Light holder, swivels 150°, 1 pair for FIELDLED EVO 150 mm wide
Light holder, swivelling 150°, 1 pair for FIELDLED EVO 96 mm wide
Item No.: 210200-21
FIELDLED EVO light holder, flat (1 pair)
Item No.: 210200-20
For power supply units and connection elements, see LED product accessories
