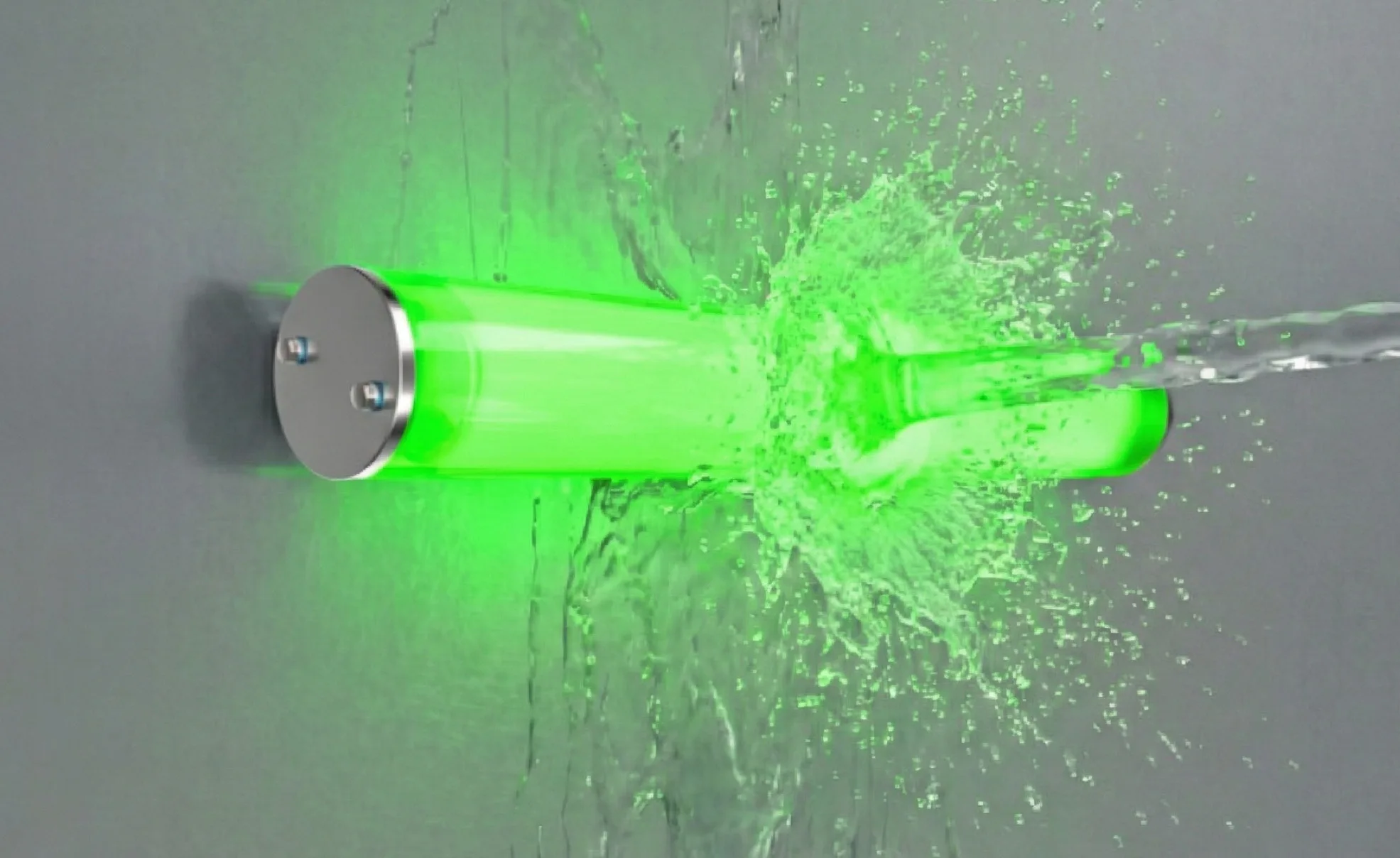

Opener INROLED 50 CleanPro RGB-W

TUBELED_25

hygienic LED light with white light and RGB signaling function.

The INROLED 50 RGB-W was developed for hygiene-sensitive environments and wash-down areas where both bright illumination and optical signaling are required.

Its opal polycarbonate protective tube is Ecolab and NSF certified, ensuring resistance to cleaning agents and disinfectants – ideal for use in the food, beverage, and pharmaceutical industries. The robust stainless-steel design provides high temperature resistance and long service life even during frequent high-pressure cleaning (IP69K certified).

Glare-free white light enables precise work, while controllable RGB colors provide clear status indication and process visualization directly in the production environment – delivering maximum hygiene, efficiency, and safety in a single lighting system.

24V DC
M12
IP67/IP69K
100% F&B
NSF
RGB
-30 °C - +55 °C (mehrere Farben +35 °C)
Reinigungstemperatur
100 000h
ETL

Your Benefits

  • Signaling and illumination through RGB color change within the LED light
  • Polycarbonate tube with Ecolab coating, V4A end caps, and stainless-steel M12 connector – robust and hygienic
  • Thoughtful design enables quick housing replacement and reduces downtime
  • Maximum protection: IP67/IP69K – dustproof and resistant to high-pressure water
  • Resistant to H₂O₂ up to 35% as well as common acids and alkalis (case-by-case testing recommended)
  • Continuous operation temperature up to +55 °C (max. +35 °C in color-mixing mode)
  • Cleaning temperature up to +80 °C when the light is switched off
  • HACCP-, Ecolab-, and NSF-certified
  • Certified to CE, UKCA, and ETL – tested to international industrial standards
  • 100% Made in Germany – durable manufacturing quality backed by a 5-year warranty

Application Areas

  • Food & beverage
  • pharmaceutical industry
  • packaging industry

Technology

  • Combined RGB/white light LEDs – PLC-controlled for color and status indication
  • Shatterproof, matte polycarbonate housing with Ecolab coating – hygienic and suitable for food industry applications
  • V4A stainless-steel end caps and stainless-steel M12 connector for maximum corrosion resistance
  • Impact resistance IK09 – withstands shocks and mechanical stress
  • Supply voltage 24 V DC via food-grade stainless-steel M12A connector (5-pin)

Service

Article number Lamp luminous flux RED Lamp luminous flux GREEN Lamp luminous flux BLUE Lamp luminous flux YELLOW White lamp luminous flux Data sheet
INROLED 50 CleanPro RGB-W, 305 mm (~12,01“), 24 V DC 158090-01 240 lm 355 lm 150 lm Array 1215 lm Data sheet
INROLED 50 CleanPro RGB-W, 565 mm (~22,24“), 24 V DC 158290-01 480 lm 710 lm 300 lm Array 2430 lm Data sheet
INROLED 50 CleanPro RGB-W, 1065 mm (~41,93“), 24 V DC 158490-01 960 lm 1420 lm 600 lm Array 4860 lm Data sheet

Product Accessories

Product Accessories

INROLED 50 luminaire holder for Food & Beverage (1 pair)
INROLED 50 luminaire holder for Food & Beverage (1 pair)
Item No.: 210200-09
INROLED 50 spring terminals (1 pair)
INROLED 50 spring terminals (1 pair)
Item No.: 210200-17
INROLED 50 Luminaire support, screw-on base + cable tie (1 pair)
INROLED 50 Luminaire support, screw-on base + cable tie (1 pair)
Item No.: 210200-13
