Lighting made in Germany
Illustration of LED Machine Light | LED Workstation Light | CENALED LENS Flexarm - LED2WORK

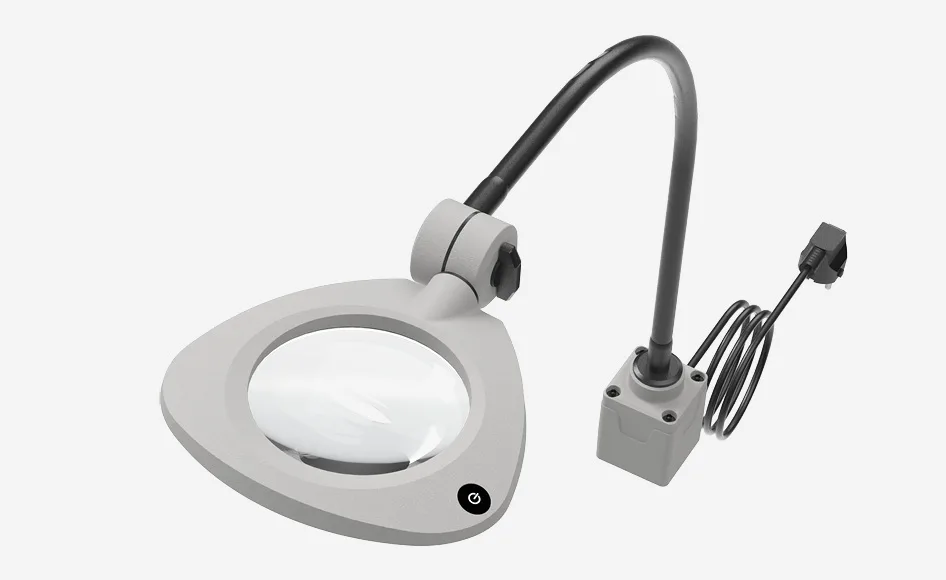

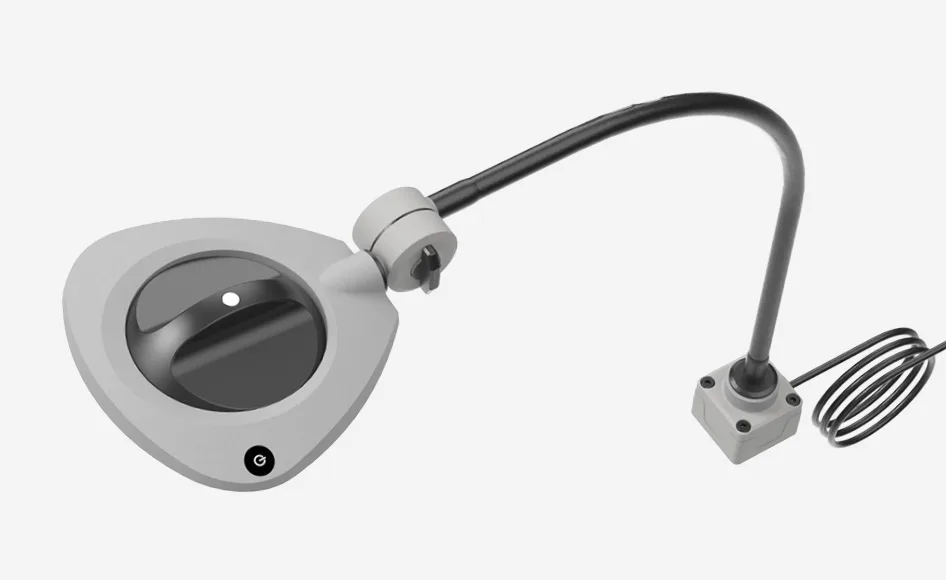

LED magnifier lamp

CENALED LENS Flexarm

LED magnifier luminaires

For use at the workplace, in production or at test stations: The LED magnifier lamp CENALED LENS Flexarm brings out even tiny details in a big way!

This LED workplace lamp is highly mobile and virtually indestructible. The head and base are die-cast from high-quality aluminum and powder-coated. The flexible gooseneck features an oil-resistant encasing and holds the head of the magnifier lamp securely in position after alignment. The area to be magnified under the magnifying glass is illuminated homogeneously and without shadows. The light emitted is filtered through an opal white cover, thereby also increasing contrast and sharpness. If the illumination is too strong, the light intensity can be reduced. A push button on the head of the light allows it to be switched on and off as well as dimmed.

The LED flex arm light forms part of the CENALED modular system. Manufactured in Germany from standardized parts made of die-cast aluminum and in strict compliance with applicable regulations, the CENALED series is a workstation luminaire featuring state-of-the-art technology that is both economical and attractively priced.

Attribut CENALED
Illustration of LED Machine Light | LED Workstation Light | CENALED LENS Flexarm - LED2WORK
Illustration of LED Machine Light | LED Workstation Light | CENALED LENS Flexarm - LED2WORK
Illustration of LED Machine Light | LED Workstation Light | CENALED LENS Flexarm - LED2WORK

BENEFITS

  • LED ring with economical, high-performance mid-power LED chips from SSC
  • PWM dimmable
  • Bright illumination in daylight white with high sharpness of detail
  • Wide beam angle for diffused light
  • Dimmable via pushbutton on lamp head
  • Gooseneck allows the lamp to be steplessly and precisely aligned
  • Oil-resistant encased flexible arm and safety glass, suitable for harsh manufacturing environments
  • Universal screw-on base, adaptable for optional mounting accessories: Magnetic clamp, table clamp or wall mount

AREAS OF APPLICATION

  • Trades, manufacturing, metalworking
  • Workstations for installations and machines
  • Test stations, workbenches and manual workstations
  • Conventional machine tools

TECHNOLOGY

  • LED ring with high-power LEDs in daylight white for illuminating the magnification area
  • Wide beam angle and high color reproduction
  • Dimmable via pushbutton on lamp head
  • LED chip long life > 60,000h (L80/B10)
  • Glass lens, illuminated, 4 dpt., biconvex Ø116 mm, focal length 250 mm
  • Encased gooseneck, waterproof, oil resistant – highly flexible, tested for 20,000 bending cycles
  • IP54 protection rating
  • Flicker-free PWM dimming
  • On/off switch and dimming via pushbutton on lamp head
  • DC version: 24V DC supply voltage via 3 m supply cable and open stranded wires
  • AC version: 100-305V AC supply voltage via 3 m supply cable and SCHUKO CEE 7/7
  • Delivery incl. lens cover
  • No maintenance required, 36 month guarantee
  • Made in Germany
ON/OFF switch and dimming on the lamp head
Attachment of magnetic clamp (optional) to screw base
Base CENALED LENS DC | Connection 24V DC
Base CENALED LENS AC | Connection 100-305V AC

VERSIONS

  • 2 versions: CENALED LENS DC Flexarm with 24V DC and CENALED LENS AC Flexarm with wide-range voltage 100-305V AC
  • Variable mounting via optional accessories, such as magnetic clamp, table clamp or wall bracket
CENALED LENS Flexarm DC
CENALED LENS Flexarm AC
Article number Data sheet
CENALED LENS Flexarm DC 121110-01 Data sheet
CENALED LENS Flexarm AC 121110-11 Data sheet

Product Accessories

CENALED wall bracket for screw-on base
CENALED wall bracket for screw-on base
Item No.: 220500-03
CENALED magnetic clamp for screw-on base
CENALED magnetic clamp for screw-on base
Item No.: 220500-01
CENALED table clamp for screw-on base
CENALED table clamp for screw-on base
Item No.: 220500-02
