Item No.: 220500-03

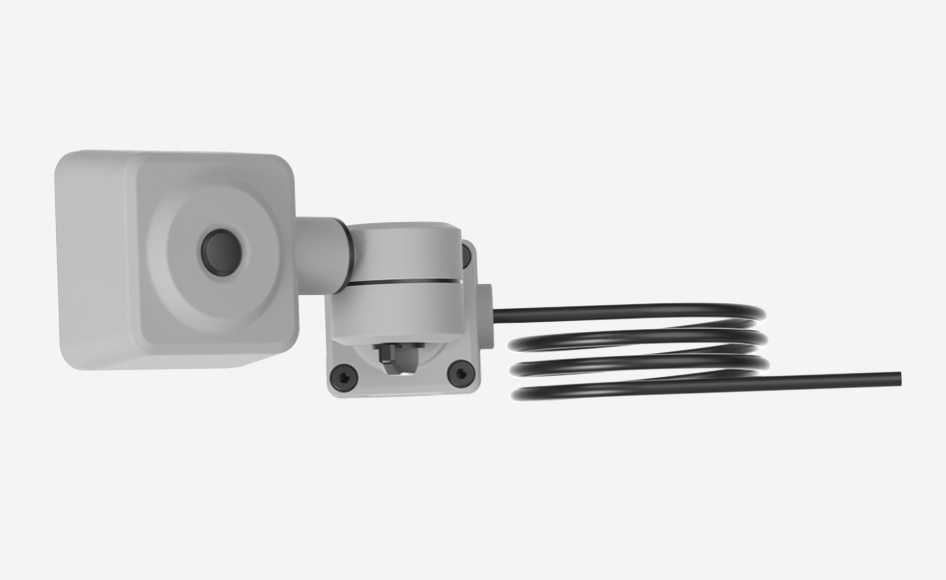

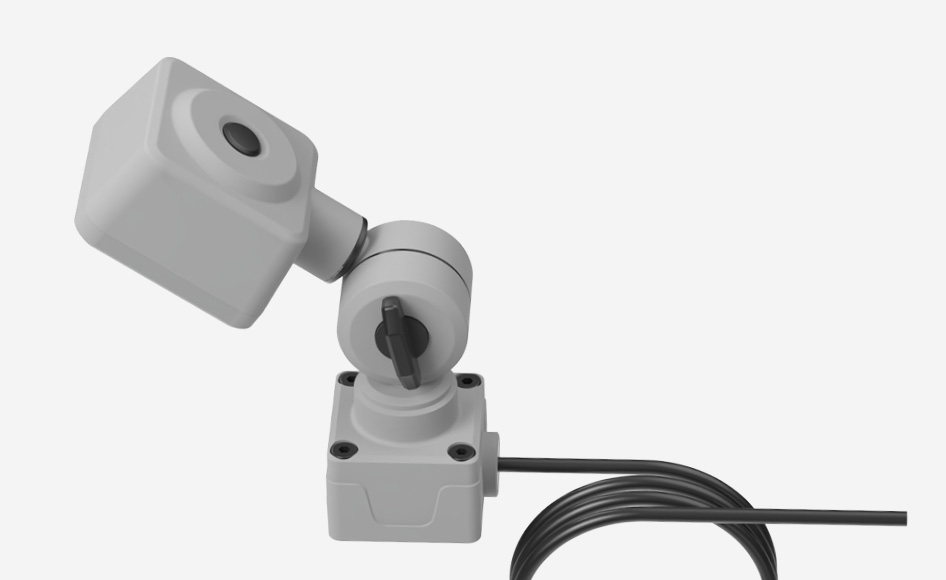

LED Luminaire with Swivel Head
CENALED SPOT Gelenkkopf - Swivel Head Luminaire
Rather inconspicuous, but robust and with a lot of power
The CENALED SPOT in the space-saving swivel head version is ideal for working areas that lack space. Thanks to features such as the robust aluminium housing and safety glass to protect the high-performance LEDs, the luminaire can even be used in machine tools. A backplate is used for direct mounting or as a base for additional mounting accessories, such as magnetic holder or wall mount bracket.
The LED swivel head luminaire is part of the CENALED modular system. Manufactured with standardized parts made of aluminium die casting alloy, the CENALED series offers energy-efficient and cost-attractive, all-purpose workplace lighting using the latest technologies.
YOUR BENEFITS
- Highly compact and energy-efficient LED luminaire using the most advanced LED technology
- Medium beam angle
- Intense illumination using neutral white light with high level of detail
- Dimmable via buttons on the luminaire head
- The light path can be precisely directed by adjustable swivel head
- All-purpose backplate, also usable for optional mounting accessories
AREAS OF APPLICATION

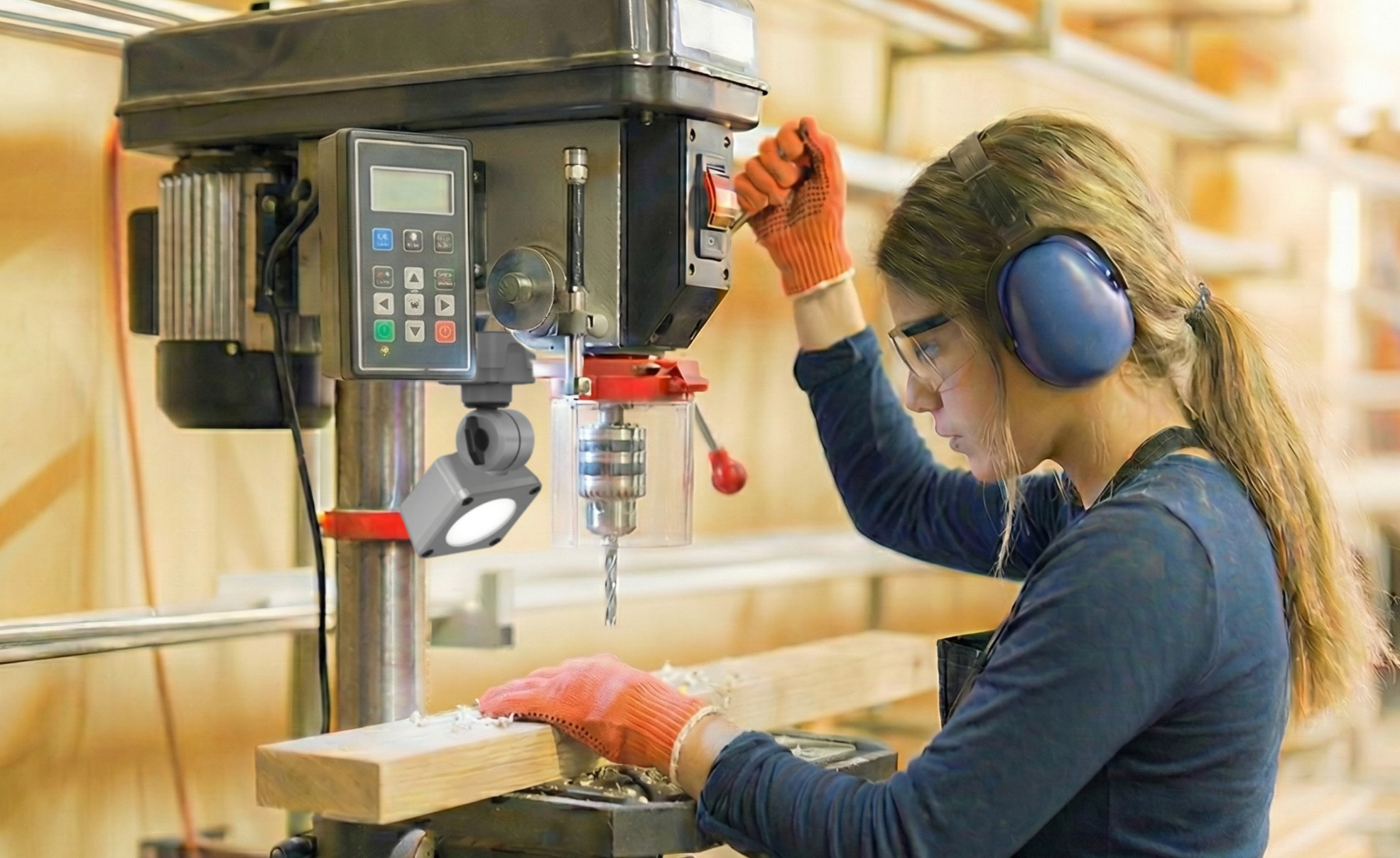

- Machine tools or machine workstations
- Facilities and production shops lacking space
- Workbenches and test stations
- Microscope lighting
THE TECHNOLOGY
- High-performance LED chips for neutral white light
- High High colour rendering
- Medium beam angle for focused illumination
- Dimmable via buttons on the luminaire head
- Crack-proof safety glass
- Almost no heat is produced due to thermal management inside the housing
- DC version: IP67 rating and supply voltage 24V DC via 3m power cable and open endsund offene Litzen
- AC version: IP65 rating and supply voltage 100-305V AC via 3m power cable and SCHUKO CEE 7/7
- Maintenance-free, 36-month warranty
- Manufactured in Germany
DESIGNS
- 2 versions: CENALED SPOT DC Gelenkkopf with 24V DC for the connection to machine voltage and CENALED SPOT AC Gelenkkopf with a wide input voltage range 100-305V AC
- Diverse mounting options with optional accessories, such as magnetic holder or wall mount bracket
CENALED SPOT Gelenkkopf
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| CENALED SPOT DC, Gelenkkopf Joint head luminaire | 121012-03 | ~8,5 W | 1120 lm | Data sheet | |
| CENALED SPOT AC, Gelenkkopf Joint head luminaire | 121012-13 | ~9 W | 1120 lm | Data sheet |
Product Accessories
CENALED wall bracket for screw-on base
CENALED magnetic clamp for screw-on base
Item No.: 220500-01
CENALED table clamp for screw-on base
Item No.: 220500-02
