LED surface mounted light

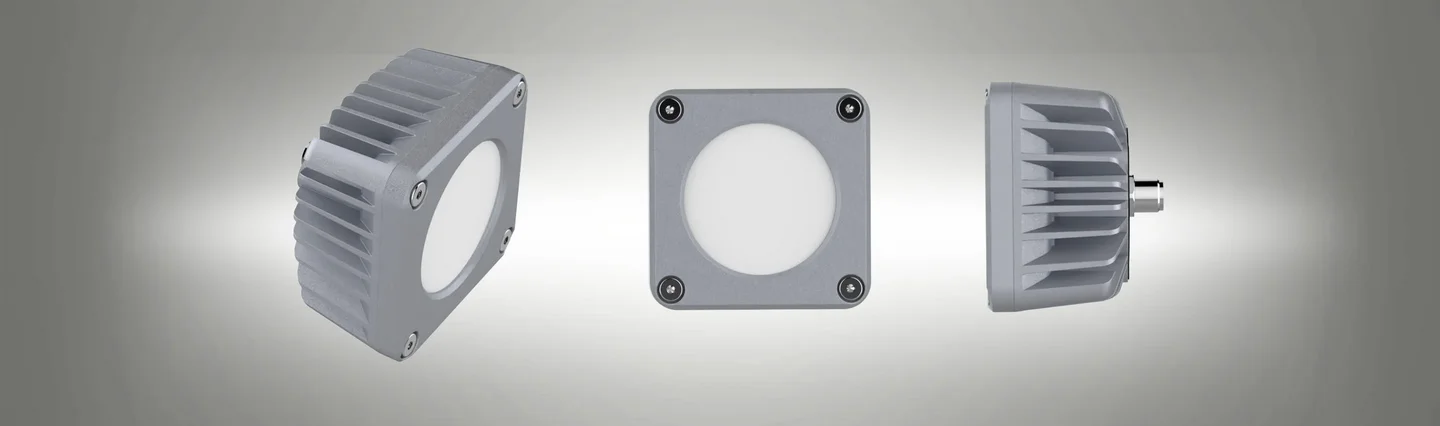

CENALED SPOT Mounting Version

Compact, robust and bright

The CENALED SPOT series is a modern and at the same time economical solution for the illumination of work areas. The compact CENALED SPOT structure is particularly suitable for tightly dimensioned areas and offers excellent illumination thanks to state-of-the-art LED technology. The robust aluminum housing and the safety glass protect the luminaire from external influences such as chip shot or cooling lubricants.

Depending on the optics installed, the CENALED SPOT surface-mounted luminaire can be used both as spot lighting and for wide-angle illumination. It can be mounted directly on a flat surface, for example inside a machine enclosure. Alternatively, the luminaire can be mounted on an optional articulating bracket to allow rotation and fixation in almost any direction.

Thanks to its high degree of protection, the CENALED SPOT structure is ideally protected against dust and moisture, making it suitable for use in demanding work environments.

Attributes CENALED
Illustration of LED machine light | LED workstation light | CENALED SPOT - LED2WORK
Illustration of LED machine light | LED workstation light | CENALED SPOT - LED2WORK
Illustration of LED machine light | LED workstation light | CENALED SPOT - LED2WORK
Illustration of LED machine light | LED workstation light | CENALED SPOT - LED2WORK
Illustration of LED machine light | LED workstation light | CENALED SPOT - LED2WORK
Illustration of LED machine light | LED workstation light | CENALED SPOT - LED2WORK

Your advantages

  • compact, robust LED luminaire with state-of-the-art technology
  • Bright illumination in neutral white with high detail sharpness
  • High protection class - dust and splash-proof
  • Variants with 15°, 30° or 65° optics available

Areas of application

  • Machine tool or machine workstations
  • Plants and production rooms with little space
  • Workbenches and test stations
  • Camera applications for industrial image processing

The technique

  • High power LED chips for neutral white
  • High color rendering
  • Three variants with different beam angles
  • Shatterproof toughened safety glass
  • Hardly any heat generation due to smart thermal management
  • Protection class IP67 and supply voltage 24V DC via connector M12 A-coded
  • Maintenance free, 36 months warranty
  • Made in Germany

Versions

  • 3 variants: 15°,30° or 65° optics

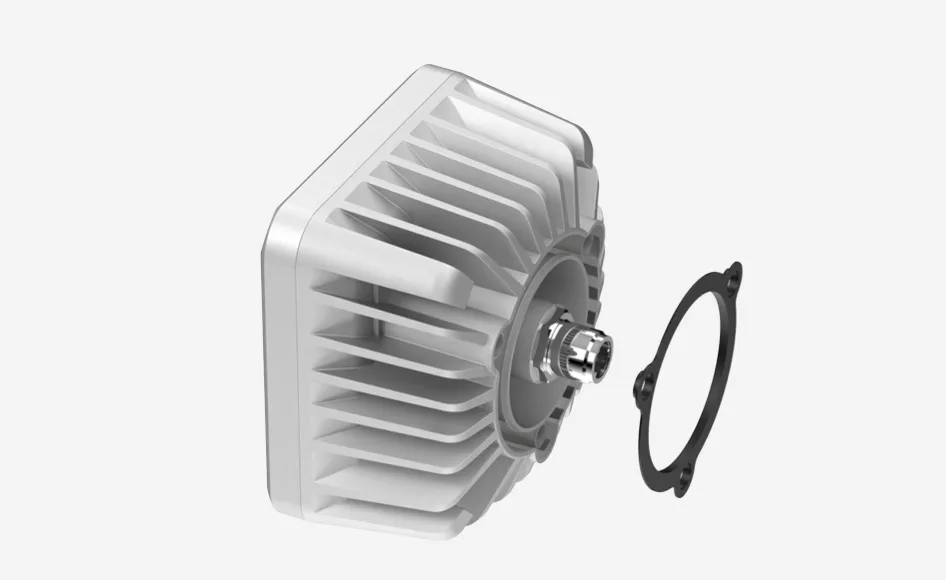

  • Included in the scope of delivery of all surface-mounted luminaire variants: LED luminaire and sealing ring for rear mounting
Article number Data sheet
Machine light CENALED SPOT Aufbau DC, (surface mounted light), optics 15° 121011-04 Data sheet
Machine light CENALED SPOT Aufbau DC, (surface mounted light), optics 30° 121012-04 Data sheet
Machine light CENALED SPOT Aufbau DC, (surface mounted light), optics 65° 121013-04 Data sheet

Product Accessories

SPOTLED II articulated joint
SPOTLED II articulated joint
Item No.: 214300-01
