Item No.: 200100-21

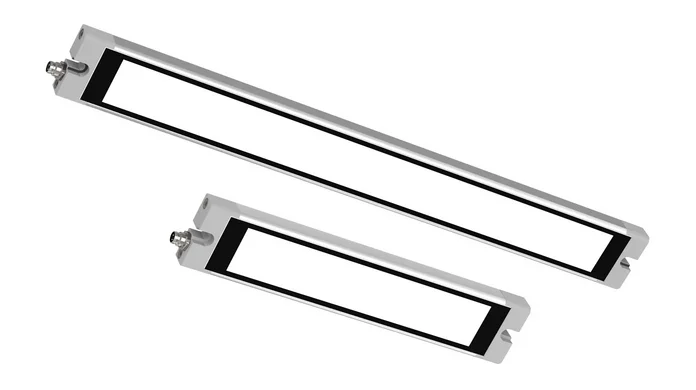

LED Machine Light
VARILED II
Slim, robust, and reliable
The VARILED II LED machine light is an extremely flat surface-mounted LED light (< 15 mm) designed for initial installation or retrofitting to illuminate machines and systems. Its high IP67 rating ensures excellent sealing. In addition, the light is resistant to many substances such as oils and cooling lubricants. Its advantage is the narrow, ultra-slim design combined with a homogeneous and glare-free illumination that one would not expect from such a compact light.
Your Benefits
- Homogeneous, glare-free light through diffuse light distribution
- Extremely robust LED machine light
- Very slim design and space-saving installation in the working area
Areas of Application

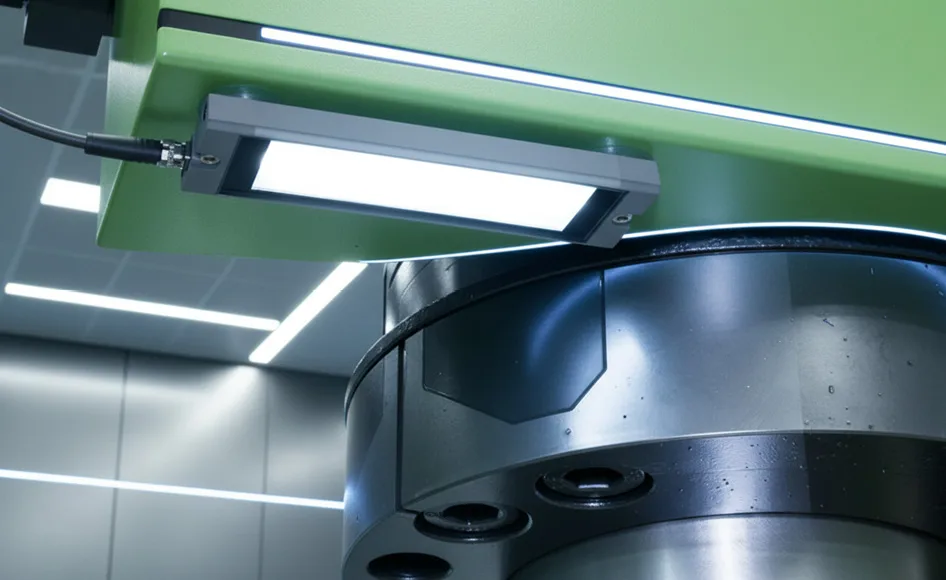

- For workplaces with confined space conditions
- Machine tools and machining centers
- Injection molding machines, extruders, and blow molding machines
- For illuminating automated systems
The Technology
- High-performance LEDs with 5600K (3-step MacAdam)
- Aluminum base body with single-pane safety glass
- Wide-beam optics with a high-quality diffuser
- Slim housing with M8 connector
- Maintenance-free, 36-month warranty
- Made in Germany
Versions
- 7 lengths: 125 mm, 208 mm, 298 mm, 383 mm, 558 mm, 733 mm, 1058 mm
- Mounting via elongated hole directly on the housing
VARILED II
VARILED II Power
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| VARILED II Power, 125 mm (~4,92“), 24V DC | 157010-01 | 4 W | 633 lm | Data sheet | |
| VARILED II Power, 208 mm (~8,19“), 24V DC | 157110-01 | 8 W | 1266 lm | Data sheet | |
| VARILED II Power, 298 mm (~11,73“), 24V DC | 157210-01 | 12 W | 1899 lm | Data sheet | |
| VARILED II Power, 383 mm (~15,08“), 24V DC | 157310-01 | 16 W | 2531 lm | Data sheet | |
| VARILED II Power, 558 mm (~21,97“), 24V DC | 157410-01 | 24 W | 3798 lm | Data sheet | |
| VARILED II Power, 733 mm (~28,86“), 24V DC | 157510-01 | 32 W | 5062 lm | Data sheet | |
| VARILED II Power, 1058 mm (~41,65“), 24V DC | 157610-01 | 48 W | 7596 lm | Data sheet |
Product Accessories
Sensor cable, 5 m, 3 wires, open/M8 female, for 24V
Sensor cable, 10 m, 3 wires, open/M8 female, for 24V
Item No.: 200100-22
Sensor cable, 2 m, 3 wires, open/M8 female, for 24V
Item No.: 200100-20
Adapter, M8 female to M12 male, straight
Item No.: 200200-21
