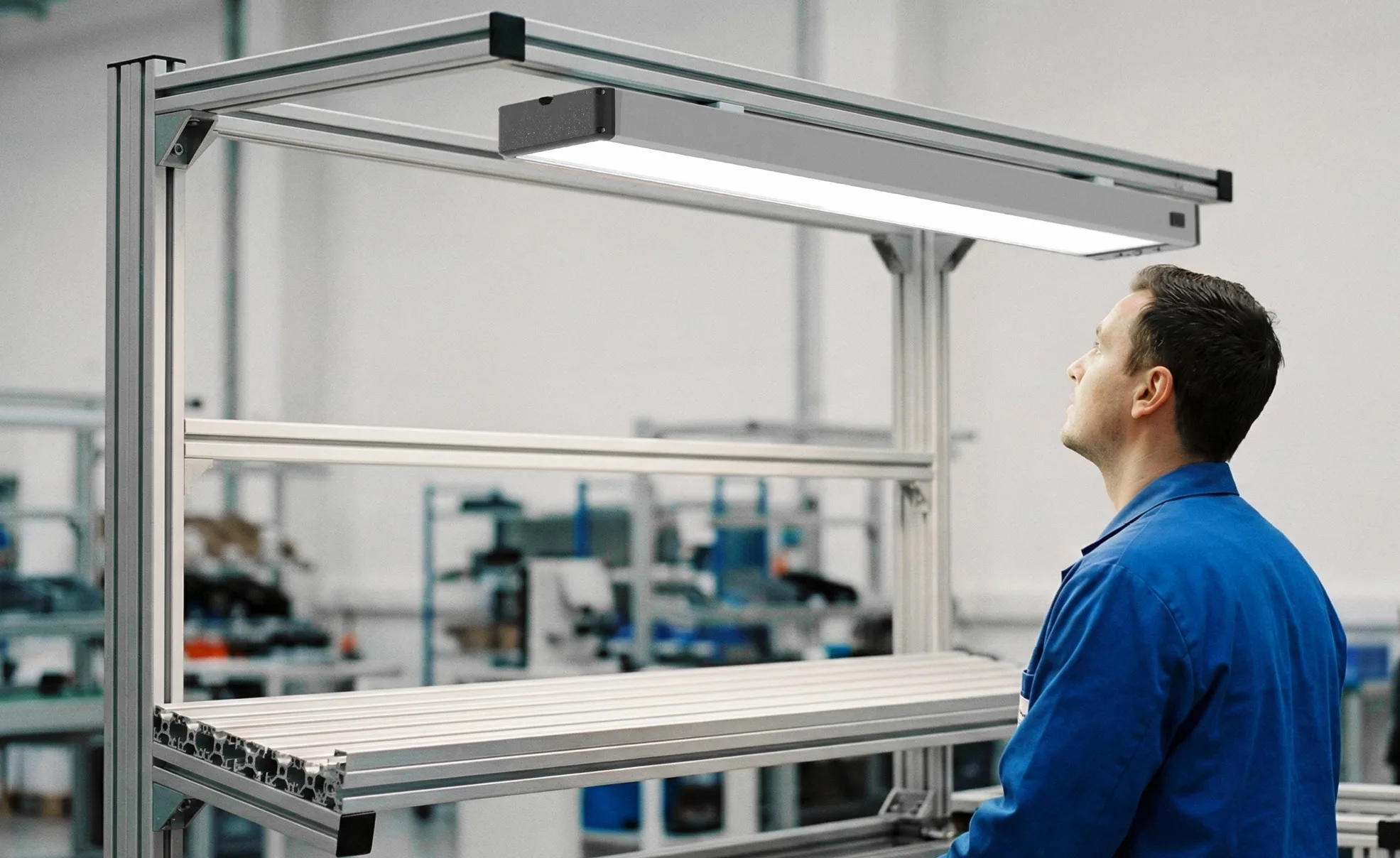

Opener SYSTEMLED EVO PIR

SYSTEMLED EVO PIR

with integrated motion sensor

The proven SYSTEMLED EVO is also available with an integrated PIR motion sensor (Passive Infrared Sensor).

The sensor detects movement within the work area and automatically controls the light according to presence: If no motion is detected, the light switches off energy-efficiently after a selectable delay time (5, 10, 15 or 30 minutes) – and switches on again immediately when activity is detected.

Both sensitivity and delay time can be adjusted in several steps, allowing the SYSTEMLED EVO PIR to be perfectly adapted to different work environments and user habits – for efficient, comfortable workplace lighting with maximum energy savings.

120_277V AC
GST18i
IP40
100 000h
PIR
RA >90
-10 °C - +50 °C

Your Benefits

  • Automatic light control via PIR sensor – switches off when no presence is detected and on again when movement occurs
  • Adjustable sensitivity and delay time – easily adaptable to workplace conditions
  • Flicker-free, UV- and IR-free white light – uniform, precise, and easy on the eyes for industrial and laboratory workstations
  • Glare-free and color-accurate (Ra > 90) – daylight-quality illumination without reflections
  • Available in 4000 K or 5700 K – choose between an energy-efficient ECO version or a high-output Power version
  • Shadow-free, homogeneous light surface – ideal for precise tasks in industrial and lab environments Brightness can be easily adjusted and saved – intelligently controlled via external operating device
  • Certified to CE, UKCA, and ETL – tested to meet international industry standards
  • 100% Made in Germany – durable manufacturing quality with a 5-year warranty

Application Areas

  • System workstations
  • assembly stations
  • optical inspection workstations
  • high-quality inspection workstations

Technology

  • Integrated PIR module with sensor unit and selector switches – enables automatic light control with factory-set adjustable delay time and sensitivity
  • Latest LED technology with uniform light distribution across the full width and depth of the fixture
  • Shatter-resistant microprism cover – glare-free and safe for use in demanding work environments
  • Efficient heat dissipation via aluminum base body ensures long service life and consistent light output
  • Rear T-slot mounting for secure installation on walls, ceilings, machines, or workstation systems

Service

Article number Power consumption Lamp luminous flux Data sheet
SYSTEMLED EVO PIR - ECO, 4000K, 472 mm (~18,58“) 155020-04 ~12 W 1990 lm Data sheet
SYSTEMLED EVO PIR - ECO, 4000K, 898 mm (~35,35“) 155120-04 ~23 W 3980 lm Data sheet
SYSTEMLED EVO PIR - ECO, 4000K, 1120 mm (~44,09“) 155220-04 ~29 W 4975 lm Data sheet
SYSTEMLED EVO PIR - ECO, 4000K, 1342 mm (~52,83“) 155320-04 ~35 W 5970 lm Data sheet
SYSTEMLED EVO PIR - ECO, 4000K, 1782 mm (~70,16“) 155420-04 ~46 W 7960 lm Data sheet
view in shop Download CAD
Article number Power consumption Lamp luminous flux Data sheet
SYSTEMLED EVO PIR - ECO, 5700K, 472 mm (~18,58“) 155010-04 ~12 W 1990 lm Data sheet
SYSTEMLED EVO PIR - ECO, 5700K, 898 mm (~35,35“) 155110-04 ~23 W 3980 lm Data sheet
SYSTEMLED EVO PIR - ECO, 5700K, 1120 mm (~44,09“) 155210-04 ~29 W 4975 lm Data sheet
SYSTEMLED EVO PIR - ECO, 5700K, 1342 mm (~52,83“) 155310-04 ~35 W 5970 lm Data sheet
SYSTEMLED EVO PIR - ECO, 5700K, 1782 mm (~70,16“) 155410-04 ~46 W 7960 lm Data sheet
view in shop Download CAD
Article number Power consumption Lamp luminous flux Data sheet
SYSTEMLED EVO PIR - POWER, 5700K, 472 mm (~18,58“) 155010-03 ~18 W 3250 lm Data sheet
SYSTEMLED EVO PIR - POWER, 5700K, 898 mm (~35,35“) 155110-03 ~37 W 6500 lm Data sheet
SYSTEMLED EVO PIR - POWER, 5700K, 1342 mm (~52,83“) 155310-03 ~55 W 9750 lm Data sheet
SYSTEMLED EVO PIR - POWER, 5700K, 1782 mm (~70,16“) 155410-03 ~73 W 13000 lm Data sheet
view in shop Download CAD

Product Accessories

Product Accessories

Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Item No.: 240400-04
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
Item No.: 240400-05
SYSTEMLED EVO / PROFILED Holder on front side
SYSTEMLED EVO / PROFILED Holder on front side
Item No.: 240400-06
Mounting kit SYSTEMLED EVO sliding blocks N8
Mounting kit SYSTEMLED EVO sliding blocks N8
Item No.: 240400-07
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
Item No.: 240400-02
SYSTEMLED EVO control unit (dimmer/switch) - 3 m (~9,84 ft.)
SYSTEMLED EVO control unit (dimmer/switch) - 3 m (~9,84 ft.)
Item No.: 240700-01
SYSTEMLED EVO Memory Stick
SYSTEMLED EVO Memory Stick
Item No.: 240700-02
SYSTEMLED EVO control unit (dimmer/switch) - 5 m (~16,4 ft.)
SYSTEMLED EVO control unit (dimmer/switch) - 5 m (~16,4 ft.)
Item No.: 240700-03
Wieland GST18 connection cable SYSTEMLED, 3 m, open ends
Wieland GST18 connection cable SYSTEMLED, 3 m, open ends
Item No.: 240200-01
GST18i3 Socket (power input) for mains connection cable
GST18i3 Socket (power input) for mains connection cable
Item No.: 240200-02
GST18i3 plug connector (current output) for cascading
GST18i3 plug connector (current output) for cascading
Item No.: 240200-03
Wieland GST18 connection line SYSTEMLED, 5 m, right angle plug
Wieland GST18 connection line SYSTEMLED, 5 m, right angle plug
Item No.: 240100-01
Wieland GST18 connection line SYSTEMLED, 3 m, right angle plug
Wieland GST18 connection line SYSTEMLED, 3 m, right angle plug
Item No.: 240100-02
GST18i3 Mains connection cable / socket - CH plug
GST18i3 Mains connection cable / socket - CH plug
Item No.: 240100-03
Wieland GST18 extension cable SYSTEMLED, 1 m
Wieland GST18 extension cable SYSTEMLED, 1 m
Item No.: 240300-01
Wieland GST18 extension cable SYSTEMLED, 2 m
Wieland GST18 extension cable SYSTEMLED, 2 m
Item No.: 240300-02
Wieland GST18 extension cable SYSTEMLED, 5 m
Wieland GST18 extension cable SYSTEMLED, 5 m
Item No.: 240300-03
