Item No.: 210200-26

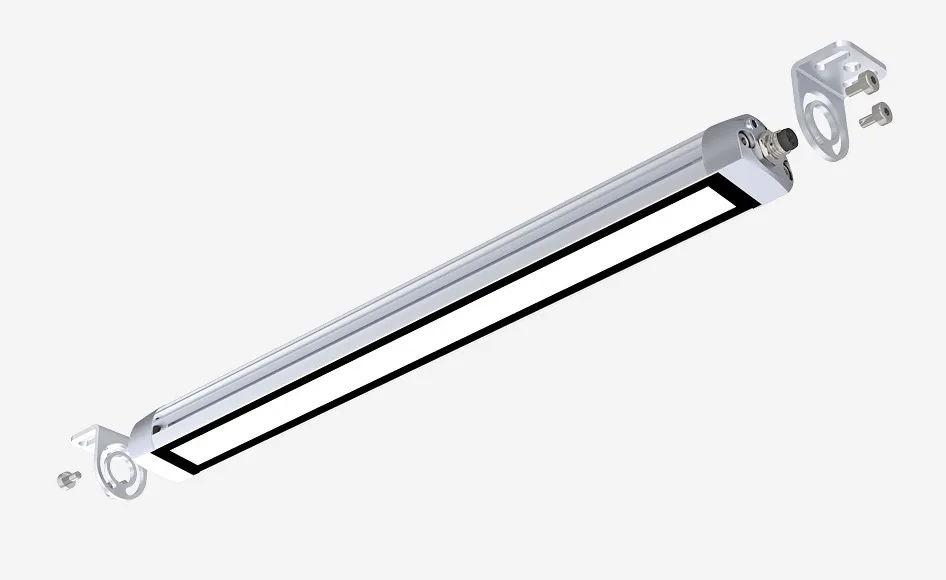

LED machine light
TUBELED_25
Clever use of light
Slim LED machine luminaire with high luminous efficacy and a wide range of applications: The TUBELED_25 was specially developed for use in technical systems, automation and for rough applications in tool and CNC machines. Due to the low height, it is very suitable for tight installation situations in machines and plants. But not only: the flicker-free light is free of UV and IR components and thus also ideally suited for longer visual tasks.
Your advantages
- Bright area light
- Flicker-free illumination, without UV and IR content
- Very slim housing geometry - also for tight installation situations
- High protection class: jet-proof and dust-tight
- Suitable for harsh environments with KSS and chip coating
- Electrically linkable variants (cascadable)
Hinweis: Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube. Mehr Erfahren
Areas of application
- Metalworking: machine tools, CNC machines
- Automation and plant engineering
- Plastics processing
The technique
- Made in Germany
- Power-optimized LED chips for daylight white
- Beam angle 100° and high color rendering
- IP67 protection class and above-average service life of the LED chips used
- Shatterproof, 4 mm thick, diffused tempered safety glass
- Chip resistant, vibration and shock resistant - 100% CNC suitable
- Oil-resistant seals (FKM seal Vition®)
- Direct connection voltage 24V DC and cascading via the M8 sensor plug-in connections commonly used in automation
- Housing: optimized aluminum profile for better heat dissipation - no burn-in of KSS
- CE - and ETL listed test seal
- Maintenance free, 36 months warranty
- Mounting via separately available accessories
Versions
- 6 lengths: 205 mm, 290 mm, 370 mm, 540 mm, 705 mm, 870 mm
- All variants also available as cascadable (electrical interlinking)
Detail
- M8 connector
TUBELED_25
TUBELED_25
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_25, 205 mm (8,07“) | 154010-01 | ~4,3 W | 667 lm | Data sheet | |
| TUBELED_25, 290 mm (11,42“) | 154110-01 | ~6,5 W | 1008 lm | Data sheet | |
| TUBELED_25, 370 mm (14,57“) | 154210-01 | ~8,6 W | 1333 lm | Data sheet | |
| TUBELED_25, 540 mm (21,26“) | 154310-01 | ~13 W | 2015 lm | Data sheet | |
| TUBELED_25, 705 mm (27,76“) | 154410-01 | ~17,2 W | 2666 lm | Data sheet | |
| TUBELED_25, 870 mm (34,25“) | 154510-01 | ~21,6 W | 3348 lm | Data sheet | |
| TUBELED_25, 1040 mm (40,94“) | 154610-01 | ~25,9 W | 4015 lm | Data sheet |
TUBELED_25 kaskadierbar
| Article number | Power consumption | Lamp luminous flux | Data sheet | ||
|---|---|---|---|---|---|
| TUBELED_25, 205 mm (8,07“), cascadable | 154010-02 | ~4,3 W | 667 lm | Data sheet | |
| TUBELED_25, 290 mm (11,42“), cascadable | 154110-02 | ~6,5 W | 1008 lm | Data sheet | |
| TUBELED_25, 370 mm (14,57“), cascadable | 154210-02 | ~8,6 W | 1333 lm | Data sheet | |
| TUBELED_25, 540 mm (21,26“), cascadable | 154310-02 | ~13 W | 2015 lm | Data sheet | |
| TUBELED_25, 705 mm (27,76“), cascadable | 154410-02 | ~17,2 W | 2666 lm | Data sheet | |
| TUBELED_25, 870 mm (34,25“), cascadable | 154510-02 | ~21,6 W | 3348 lm | Data sheet | |
| TUBELED_25, 1040 mm (40,94“), cascadable | 154610-02 | ~25,9 W | 4015 lm | Data sheet |
Product Accessories
TUBELED_25 light holder with magnet, mounting angle 180°
TUBELED_25 ligth holder with magnet, mounting angle 60°
Item No.: 210200-24
TUBELED_25 light holder, mounting bracket 60°
Item No.: 210200-23
TUBELED_25 light holder, mounting angle 180°.
Item No.: 210200-25
Sensor cable, 5 m, 3 wires, open/M8 female, for 24V
Item No.: 200100-21
Sensor cable, 10 m, 3 wires, open/M8 female, for 24V
Item No.: 200100-22
Sensor cable, 2 m, 3 wires, open/M8 female, for 24V
Item No.: 200100-20
