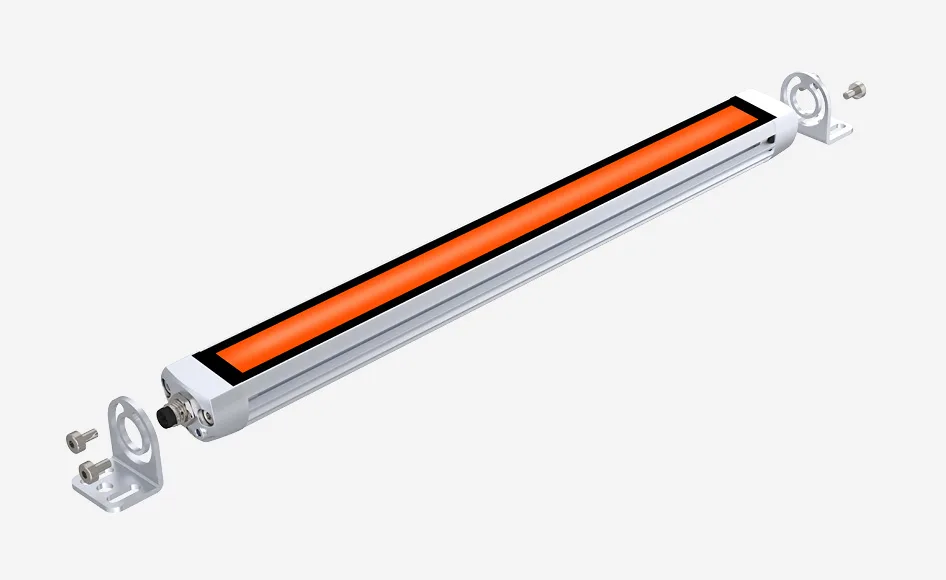

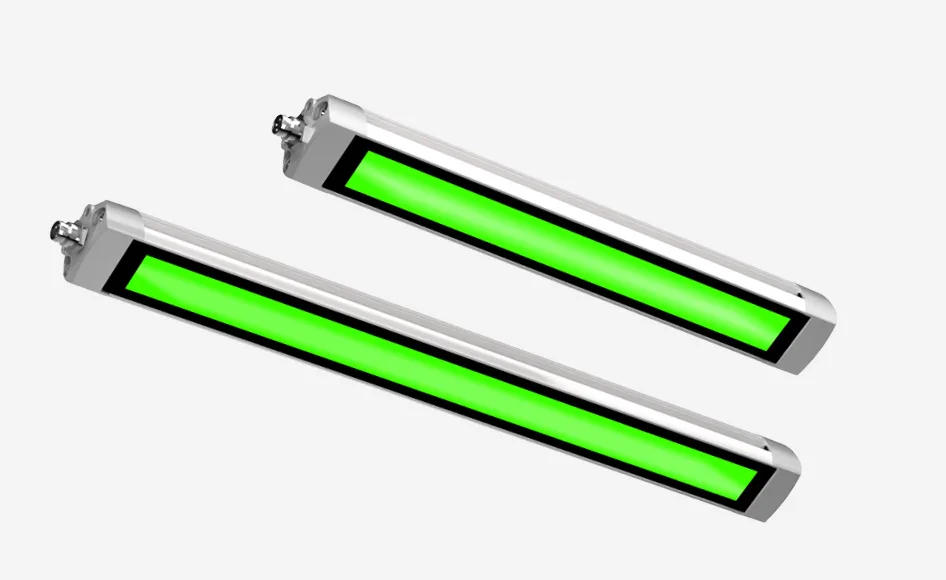

Opener TUBELED_25 RGB-W IO-Link

TUBELED_25

smart machine light with integrated communication.

The TUBELED_25 RGB-W IO-Link combines powerful LED lighting with intelligent IO-Link control – all in a compact, robust 25 mm housing designed for continuous industrial operation.

Thanks to the IO-Link interface, the light can be seamlessly integrated into existing control systems, configured, and monitored, allowing operating states and color modes to be adjusted with maximum flexibility.

Glare-free white light and precise RGB color control provide targeted illumination and signaling – perfectly matched to process and machine status.

24V DC
M8
IP67
IO-Link
100 000h
-30 °C - +55 °C
ETL

Your Benefits

  • LED machine light with flicker-free white light and freely configurable colors and flashing modes
  • TUBELED_25 RGB-W precisely indicates system statuses with individually selectable RGB colors for clear status signaling
  • Compact Ø25 mm industrial lighting – perfect for quick retrofitting in tight installation spaces
  • Chip-impact resistant, vibration- and shock-proof – ensures consistent light output even at high temperatures in machine environments
  • Maximum protection: IP67 – dustproof and waterproof for industrial applications
  • Certified to CE, UKCA, and ETL
  • German manufacturing quality – durable, precise, and backed by a 5-year warranty

Application Areas

  • Metalworking
  • CNC and machine tools
  • automation and plant engineering
  • logistics automation
  • plastics processing
  • packaging machinery

Technology

  • Integrated IO-Link controller – enables direct control, parameterization, and diagnostic functions without a separate interface
  • Combined RGB/white light LEDs – IO-Link or PLC controlled for color, brightness, and status indication
  • Aluminum extruded housing for optimal heat dissipation – prevents coolant residue from burning in
  • Oil-resistant FKM (Viton®) seals ensure long-term tightness and chemical resistance
  • Shatterproof 4 mm tempered safety glass with opal diffuser provides uniform, glare-free illumination
  • Wide 100° beam angle and high color rendering deliver brilliant, homogeneous lighting
  • 24 V DC connection with M8 connector – easy and secure integration into existing systems
  • Mounting via separately available mounting components

Service

Article number Lamp luminous flux RED Lamp luminous flux GREEN Lamp luminous flux BLUE White lamp luminous flux Data sheet
TUBELED_25 RGB-W, IO-Link, 205 mm (8,07“), 24V DC 154090-11 92 lm 168 lm 56 lm 765 lm Data sheet
TUBELED_25 RGB-W, IO-Link, 290 mm (11,42“), 24V DC 154190-11 138 lm 252 lm 84 lm 1150 lm Data sheet
TUBELED_25 RGB-W, IO-Link, 370 mm (14,57“), 24V DC 154290-11 184 lm 336 lm 112 lm 1530 lm Data sheet
TUBELED_25 RGB-W, IO-Link, 540 mm (21,26“), 24V DC 154390-11 276 lm 504 lm 168 lm 2300 lm Data sheet
TUBELED_25 RGB-W, IO-Link, 705 mm (27,76“), 24V DC 154490-11 368 lm 672 lm 224 lm 3065 lm Data sheet
TUBELED_25 RGB-W, IO-Link, 870 mm (34,25“), 24V DC 154590-11 460 lm 840 lm 280 lm 3830 lm Data sheet
view in shop Download CAD

Product Accessories

Product Accessories

TUBELED_25 ligth holder with magnet, mounting angle 60°
TUBELED_25 ligth holder with magnet, mounting angle 60°
Item No.: 210200-24
TUBELED_25 light holder, mounting angle 180°.
TUBELED_25 light holder, mounting angle 180°.
Item No.: 210200-25
TUBELED_25 light holder with magnet, mounting angle 180°
TUBELED_25 light holder with magnet, mounting angle 180°
Item No.: 210200-26
Mounting holder for TUBELED_25, 290 mm lenght, light pivotable 60°
Mounting holder for TUBELED_25, 290 mm lenght, light pivotable 60°
Item No.: 210200-27
TUBELED_25 light holder, mounting bracket 60°
TUBELED_25 light holder, mounting bracket 60°
Item No.: 210200-23
