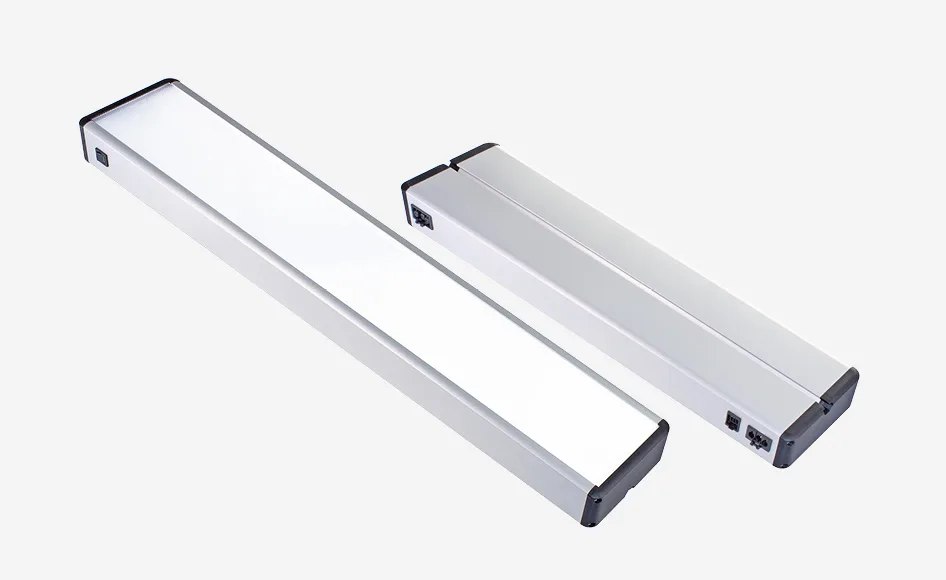

Opener SYSTEMLED EVO

SYSTEMLED EVO

180 lm/W, CRI typ. 95 – powerful, uniform, and glare-free illumination without shadows at the assembly workstation.

Maximum flexibility with minimal energy consumption.

Thanks to its Wieland GST18 plug-and-play system, it can be easily daisy-chained and expanded with features like switching, dimming, or brightness memory – ideal when performance, flexibility, and seamless integration are essential.

120/277V
GST18
IP40
100 000h
RA >90
4000k
5700K
-10 °C - +50 °C

Your Benefits

  • Flicker-free, UV- and IR-free white light – uniform, precise, and easy on the eyes for industrial and laboratory workstations
  • Glare-free and color-accurate (Ra > 90) – daylight-quality illumination without reflections
  • Available in 4000 K or 5700 K – choose between an energy-efficient ECO version or a high-output Power version
  • Shadow-free, homogeneous light surface – ideal for precise tasks in industrial and lab environments
  • Brightness can be easily adjusted and saved – intelligently controlled via external operating device
  • Certified to CE, UKCA, and ETL – tested to meet international industry standards
  • 100% Made in Germany – durable manufacturing quality with a 5-year warranty

Application Areas

  • System workstations
  • assembly stations
  • optical inspection workstations
  • high-quality inspection workstations

Technology

  • Latest LED technology with uniform light distribution across the full width and depth of the fixture
  • Shatter-resistant microprism cover – glare-free and safe for use in demanding work environments
  • Efficient heat dissipation via aluminum base body ensures long service life and consistent light output
  • Rear T-slot mounting for secure installation on walls, ceilings, machines, or workstation systems
  • Daisy-chaining supported – multiple fixtures can be easily connected and extended

Service

Article number Power consumption Lamp luminous flux Data sheet
SYSTEMLED EVO - ECO, 4000K, 472 mm (~18,58“) 155020-02 ~11,5 W 1990 lm Data sheet
SYSTEMLED EVO - ECO, 4000K, 898 mm (~35,35“) 155120-02 ~23 W 3980 lm Data sheet
SYSTEMLED EVO - ECO, 4000K, 1120 mm (~44,09“) 155220-02 ~28,75 W 4975 lm Data sheet
SYSTEMLED EVO - ECO, 4000K, 1342 mm (~52,83“) 155320-02 ~34,5 W 5970 lm Data sheet
SYSTEMLED EVO - ECO, 4000K, 1782 mm (~70,16“) 155420-02 ~46 W 7960 lm Data sheet
view in shop Download CAD
Article number Power consumption Lamp luminous flux Data sheet
SYSTEMLED EVO - ECO, 5700K, 472 mm (~18,58“) 155010-02 ~11,5 W 1990 lm Data sheet
SYSTEMLED EVO - ECO, 5700K, 898 mm (~35,35“) 155110-02 ~23 W 3980 lm Data sheet
SYSTEMLED EVO - ECO, 5700K, 1120 mm (~44,09“) 155210-02 ~28,75 W 4975 lm Data sheet
SYSTEMLED EVO - ECO, 5700K, 1342 mm (~52,83“) 155310-02 ~34,5 W 5970 lm Data sheet
SYSTEMLED EVO - ECO, 5700K, 1782 mm (~70,16“) 155410-02 ~46 W 7960 lm Data sheet
view in shop Download CAD
Article number Power consumption Lamp luminous flux Data sheet
SYSTEMLED EVO - POWER, 5700K, 472 mm (~18,58“) 155010-01 ~18,25 W 3250 lm Data sheet
SYSTEMLED EVO - POWER, 5700K, 898 mm (~35,35“) 155110-01 ~36,5 W 6500 lm Data sheet
SYSTEMLED EVO - POWER, 5700K, 1120 mm (~44,09“) 155210-01 ~45,625 W 8125 lm Data sheet
SYSTEMLED EVO - POWER, 5700K, 1342 mm (~52,83“) 155310-01 ~54,75 W 9750 lm Data sheet
SYSTEMLED EVO - POWER, 5700K, 1782 mm (~70,16“) 155410-01 ~73 W 13000 lm Data sheet
view in shop Download CAD

Product Accessories

Product Accessories

Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Mounting kit for T-slot mounting SYSTEMLED EVO/ PROFILED (1 pair)
Item No.: 240400-04
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
PROFILED / SYSTEMLED EVO Mounting kit for T-Nut slot holder T-Nut, flat, with ESD insulation (1 pair)
Item No.: 240400-05
SYSTEMLED EVO / PROFILED Holder on front side
SYSTEMLED EVO / PROFILED Holder on front side
Item No.: 240400-06
Mounting kit SYSTEMLED EVO sliding blocks N8
Mounting kit SYSTEMLED EVO sliding blocks N8
Item No.: 240400-07
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
PROFILED / SYSTEMLED Mounting kit for T-Nut slot holder T-Nut, rotatable, with ESD insulation (1 pair)
Item No.: 240400-02
SYSTEMLED EVO control unit (dimmer/switch) - 3 m (~9,84 ft.)
SYSTEMLED EVO control unit (dimmer/switch) - 3 m (~9,84 ft.)
Item No.: 240700-01
SYSTEMLED EVO Memory Stick
SYSTEMLED EVO Memory Stick
Item No.: 240700-02
SYSTEMLED EVO control unit (dimmer/switch) - 5 m (~16,4 ft.)
SYSTEMLED EVO control unit (dimmer/switch) - 5 m (~16,4 ft.)
Item No.: 240700-03
Wieland GST18 connection cable SYSTEMLED, 3 m, open ends
Wieland GST18 connection cable SYSTEMLED, 3 m, open ends
Item No.: 240200-01
GST18i3 Socket (power input) for mains connection cable
GST18i3 Socket (power input) for mains connection cable
Item No.: 240200-02
GST18i3 plug connector (current output) for cascading
GST18i3 plug connector (current output) for cascading
Item No.: 240200-03
Wieland GST18 connection line SYSTEMLED, 5 m, right angle plug
Wieland GST18 connection line SYSTEMLED, 5 m, right angle plug
Item No.: 240100-01
Wieland GST18 connection line SYSTEMLED, 3 m, right angle plug
Wieland GST18 connection line SYSTEMLED, 3 m, right angle plug
Item No.: 240100-02
GST18i3 Mains connection cable / socket - CH plug
GST18i3 Mains connection cable / socket - CH plug
Item No.: 240100-03
Wieland GST18 extension cable SYSTEMLED, 1 m
Wieland GST18 extension cable SYSTEMLED, 1 m
Item No.: 240300-01
Wieland GST18 extension cable SYSTEMLED, 2 m
Wieland GST18 extension cable SYSTEMLED, 2 m
Item No.: 240300-02
Wieland GST18 extension cable SYSTEMLED, 5 m
Wieland GST18 extension cable SYSTEMLED, 5 m
Item No.: 240300-03
